What we do

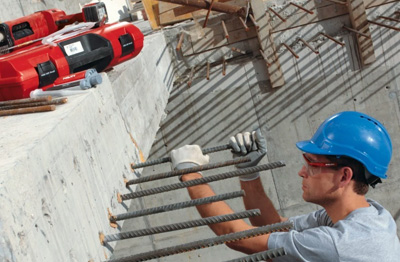

REBAR / DOWEL INSTALLATION
- It is method of anchoring, reinforcement bars in to concrete structure without any kind of R.C.C breaking.
- Application like extension work for columns, Beams, Cantilevers, Slabs, Columns to Beam Connection, Machine Foundation Extension, etc.
- Strengthening work for Beams, Columns or Extra Jacketing.

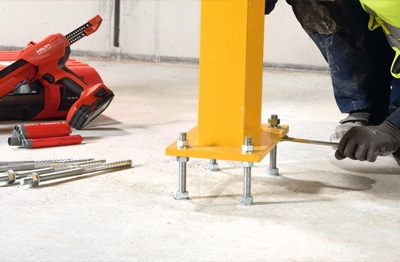

ANCHOR INSTALLATION
- Chemical/Mechanical anchor fixing for heavy, medium & light duty application.
- Fixing of insert plate for structure, Pipe Support, Channel, I Beam Support, Rails etc.
- Foundation bolt for machines subjected to high dynamic loading with less embedment depth.
- Fixing of various machine like Pump, Centrifuge, Compressor, Reactor, Filters etc.
- Place the machine were you want.

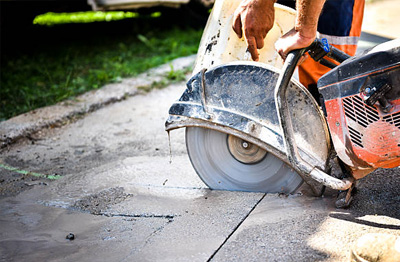

WIRE SAWING, FLOOR SAW & CORE CUTTING
- Core drilling in R.C.C for application like making pocket for machine foundation, opening for AC / Plumbing holes, Cabel /Pipe ducting, Fire fight ducting and taking Test cores.
- Vibration free cutting for slabs, Columns, Beam etc.

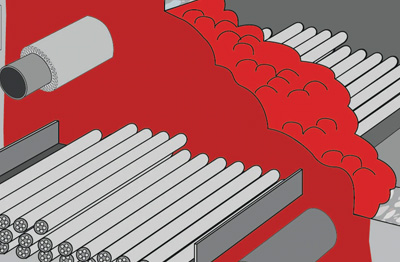

FIRE STOP HILTI SYSTEM
- Fire rated closing of opening with approved system from HILTI.
- Sealing of large and small size electric panel, cable tray and pipe opening in various industry.
- Sealing individual cables in small breaches.
- Temporary or permanent coating to delay the spread of fire.

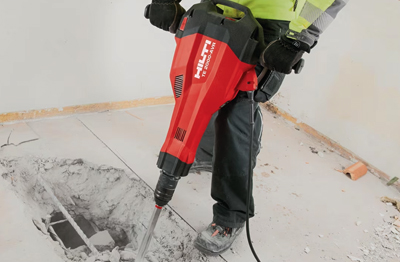

DEMOLITION / BREAKING / DRILLING
- Demolition of concrete structure like Slabs, Columns, Beams, Masonry work etc.
- Demolition of brick bat, PCC , RCC etc.
- Drilling in concrete of various dia and depth.

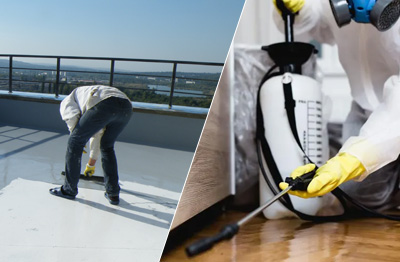

WATER PROOFING & PRIME PEST CONTROL
- Chemical water proofing
- Structural Rehabilitation
- Rust Control Coating
- Pressure Grouting
- Crack Filling
- Expansion Joint Filling etc
- Termite Control of Pre & Post Stages
- General Disinfestation
- Rodent Control
- Disinfection/Sanitization
Raised Access Flooring Systems

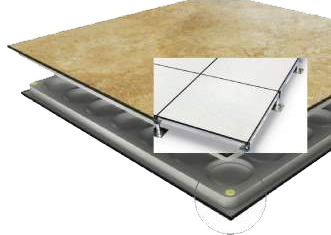

Standard Raised Access Flooring System
Standard Access floor panels (600mm x 600mm) are noncombustible in nature and are coated with electrostatic epoxy paints. These panels consist of flat steel top sheet resistance welded to formed steel bottom sheet, which is in filled with a lightweight proprietary cementitious mixture. Uniquely designed hemispherical and deliver ultimate durability and acoustic performance.
Applications
- Control Rooms
- Server/ Hub Rooms
- Data entery
- Communication Rooms
- Research Labs
- Training Rooms
Top Performance Finishes
- High Pressure Laminated(HPL)
- PVC/Vinyl Antistatic & Conductive
System Selection Guide
Grade
- USF 800
- USF 1000
- USF 1250
- USF 1500
- USF 2000
- USF 2500
Concentrated Load Kgs (lbf)
- 363 (800)
- 454 (1000)
- 567 (1250)
- 680 (1500)
- 907 (2000)
- 1134 (2500)
Ultimate Concentrated Load Kgs (lbf) (min.)
- 907 (2000)
- 1134 (2500)
- 1418 (3125)
- 1701 (3750)
- 1814 (4000)
- 2268 (5000)
Uniform Distributed Load Kgs / Sqmt (lbf / sqft)
- 1650 (338)
- 2025 (415)
- 2450 (502)
- 3100 (636)
- 3600 (738)
- 4000 (820)
Rolling Load* Kgs (lbf)
- 180 (397)
- 225 (496)
- 281 (619)
- 315 (694)
- 425 (937)
- 525 (1157)
Raised Access Flooring System
Chipboard Encapsulated Raised Access Flooring System
Untile Wood Core Floor Access Floor consist of engineered 600mm square modular panels constructed around a high density E1 grade chipboard core. This unique engineering exhibits fine dimensional tolerances for modular control, accurate
Chipboard Non-Encapsulated Raised Access Flooring System
Untile Chip Board Access Floor of engineered 600mm square modular panels constructed around a high density E1 grade chipboard core. The system fully compiles with the Euro Class requirement of EN12825.
Calcium Sulphate Raised Access Flooring System
Untile Calcium Sulphate access flooring system is manufactured from 1600kg fibre reinforced Calcium Sulphate which forms the core of the panel.
